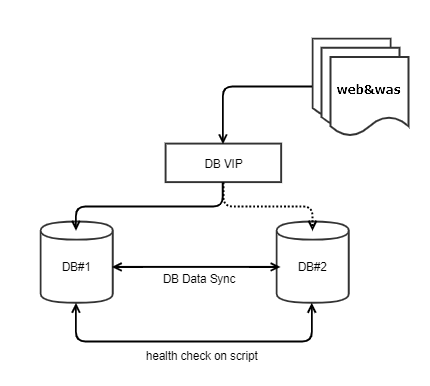

DB이중화 구성

DB 모니터링을 위한 스크립트 설치
$> vi /etc/init.d/db_check
#!/bin/bash
case "$1" in
"start")
echo "start"
;;
"stop")
echo "stop"
;;
"status")
mysql --connect-timeout 2 -u monitor -p'모니터 계정패스워드' -h localhost -Nse 'select now()'
result_code=$?
if [[ $result_code -eq 1 ]]
then
echo "[$(date +%Y-%m-%d-%H:%M:%S)] DB Connection Error" >> /var/log/db_check
pcs resource move DB_GROUP {{ 상대방IP }}
fi
;;
*)
echo "start|stop|status"
exit 1
;;
esac
DB이중화 구성을 위한 리소스 설정
$> pcs cluster setup db_ha {{ DB1_IP }} {{ DB2_IP }} --force
$> pcs cluster start --all
$> pcs property set stonith-enabled=false
$> pcs property set no-quorum-policy=ignore
$> pcs resource defaults update resource-stickiness=100
$> pcs resource create DB_CHECK service:db_check op status timeout=10s interval=10s --group DB_GROUP
$> pcs resource create DB_VIP ocf:heartbeat:IPaddr2 ip={{ DB_VIP }} cidr_netmask=32 op monitor interval=10s --group DB_GROUP
