corosync / pacemaker 기반의 DB이중화

1.
2. 패키지 설치

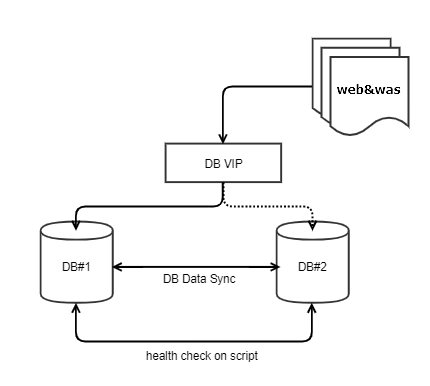

3. DB이중화 구성




4. DB 모니터링을  위한 스크립트 설치
5. $> vi /etc/init.d/db_check #!/bin/bash case "$1" in "start") echo "start" ;; "stop") echo "stop" ;; "status") mysql --connect-timeout 2 -u monitor -p'모니터 계정패스워드' -h localhost -Nse 'select now()' result_code=$? if [[ $result_code -eq 1 ]] then echo "[$(date +%Y-%m-%d-%H:%M:%S)] DB Connection Error" >> /var/log/db_check pcs resource move DB_GROUP {{ 상대방IP }} fi ;; *) echo "start|stop|status" exit 1 ;; esac
6. DB이중화 구성을 위한 리소스 설정
7. $> pcs cluster setup db_ha {{ DB1_IP }} {{ DB2_IP }} --force $> pcs cluster start --all $> pcs property set stonith-enabled=false $> pcs property set no-quorum-policy=ignore $> pcs resource defaults update resource-stickiness=100 $> pcs resource create DB_CHECK service:db_check op status timeout=10s interval=10s --group DB_GROUP $> pcs resource create DB_VIP ocf:heartbeat:IPaddr2 ip={{ DB_VIP }} cidr_netmask=32 op monitor interval=10s --group DB_GROUP



출처 - http://igoni.kr/books/dbms/page/corosync-pacemaker-db
