corosync / pacemaker 기반의 DB이중화 구현

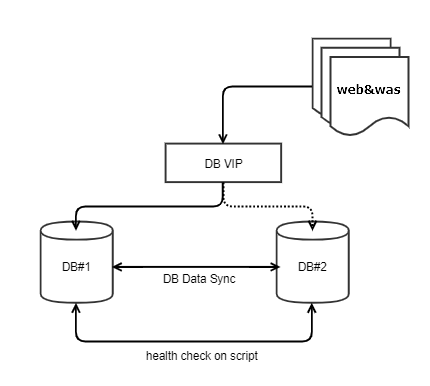

DB이중화 구성

DB 모니터링을 위한 스크립트 설치

$> vi /etc/init.d/db_check
#!/bin/bash

case "$1" in
 "start")
   echo "start"
 ;;
 "stop")
   echo "stop"
 ;;
 "status")
  mysql --connect-timeout 2 -u monitor -p'모니터 계정패스워드' -h localhost -Nse 'select now()'
  result_code=$?

  if [[ $result_code -eq 1 ]]
  then
   echo "[$(date +%Y-%m-%d-%H:%M:%S)] DB Connection Error" >> /var/log/db_check
   pcs resource move DB_GROUP {{ 상대방IP }}
  fi
 ;;
 *)
   echo "start|stop|status"
   exit 1
 ;;
esac



DB이중화 구성을 위한 리소스 설정

$> pcs cluster setup db_ha {{ DB1_IP }} {{ DB2_IP }} --force
$> pcs cluster start --all
$> pcs property set stonith-enabled=false
$> pcs property set no-quorum-policy=ignore
$> pcs resource defaults update resource-stickiness=100
$> pcs resource create DB_CHECK service:db_check op status timeout=10s interval=10s --group DB_GROUP
$> pcs resource create DB_VIP  ocf:heartbeat:IPaddr2 ip={{ DB_VIP }} cidr_netmask=32 op monitor interval=10s --group DB_GROUP
