corosync / pacemaker를 이용한 HA구성

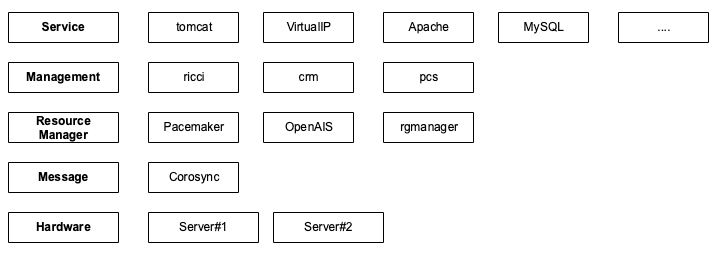

1. HA stack

1. Hardware : 물리서버
2. Message : Clustering 맴버간 통신상태 확인
3. Resoure Manager : failover / failback 작업 수행
4. Management : HA를 구성하도록 제공되는 Tool
5. Service : HA용 서비스

1. Service Architecture (Active  / Standby)



설치 방안 (모든 노드)

1.패키지 설치

$> yum install corosync pacemaker pcs automake -y

1.HA를 위한 사용자 계정설정 후 pcsd 서비스 실행 (모든노드 동일한 패스워드 입력)

$> passwd hacluster
Changing password for user hacluster.
New password:
BAD PASSWORD: it is based on a dictionary word
Retype new password:
passwd: all authentication tokens updated successfully.
$> systemctl start pcsd



1. 클러스터 인증구성 (이후 과정은 master or slave 중 1대에서만 수행)

   $> pcs cluster auth master slave
   Username: hacluster
   Password:
   master: Authorized
   slave: Authorized

2. 클러스터 구성

   $> pcs cluster setup --name cluster master slave
   Destroying cluster on nodes: master, slave...
   master: Stopping Cluster (pacemaker)...
   slave: Stopping Cluster (pacemaker)...
   slave: Successfully destroyed cluster
   master: Successfully destroyed cluster

   Sending 'pacemaker_remote authkey' to 'master', 'slave'
   slave: successful distribution of the file 'pacemaker_remote authkey'
   master: successful distribution of the file 'pacemaker_remote authkey'
   Sending cluster config files to the nodes...
   master: Succeeded
   slave: Succeeded

   Synchronizing pcsd certificates on nodes master, slave...
   master: Success
   slave: Success
   Restarting pcsd on the nodes in order to reload the certificates...
   master: Success
   slave: Success

3. 클러스터 에 필요한 서비스 구동

   $> pcs cluster start --all
   # pcs status corosync

   Membership information
   ----------------------
       Nodeid      Votes Name
           1          1 master (local)
           2          1 slave


   #pcs property set stonith-enabled=false

4. 재부팅 후 서비스 활성화 (양쪽서버에서 모두 수행)

   # systemctl enable pacemaker
   # systemctl enable corosync

관리툴(crmsh) 설치

1. crmsh설치를 위한 OS 패키지 설치

   $> yum install -y python-lxml  pacemaker-libs-devel asciidoc python-dateutil python-yaml --skip-broken
   $> yum install python-devel python-setuptools -y

2. crmsh 패키지 다운로드 후 설치

   $> ./autogen.sh
   autoconf:       autoconf (GNU Autoconf) 2.63
   automake:       automake (GNU automake) 1.11.1
   aclocal
   automake --add-missing --include-deps --copy
   configure.ac:33: installing `./install-sh'
   configure.ac:33: installing `./missing'
   autoconf
   Now run ./configure

   ># ./configure
   checking for a BSD-compatible install... /usr/bin/install -c
   checking whether build environment is sane... yes
   checking for a thread-safe mkdir -p... /bin/mkdir -p
   checking for gawk... gawk
   checking whether make sets $(MAKE)... yes
   checking for python... /usr/bin/python
   checking for python version... 2.6
   checking for python platform... linux2
   checking for python script directory... ${prefix}/lib/python2.6/site-packages
   checking for python extension module directory... ${exec_prefix}/lib64/python2.6/site-packages
   checking for asciidoc... no
   configure: creating ./config.status
   config.status: creating Makefile
   config.status: creating hb_report/hb_report
   config.status: creating crm.conf
   config.status: creating version
   ># make; make install
   ...

3. CRM 라이브러리 연동

   # ln -s /usr/local/lib/python2.6/site-packages/crmsh   /usr/lib/python2.6/site-packages/

4. 서비스 구동

   # /etc/init.d/corosync start
   ># /etc/init.d/pacemaker start
   ># chkconfig corosync on
   ># chkconfig pacemaker on

   • 주의사항 : Pacemaker/Corosync를 이용한 HA시 corosync에서 메시지를 처리하기 때문에 pacemaker보다 corosync가 먼저 실행되어야 한다.
   • 서비스 중지는 pacemaker → corosync 순으로 종료
5. 서비스 이상여부 확인

   $> crm_mon -1

6. HA 리소스 구성

   ########## 동일한 가중치 설정으로 Auto-Failback 비활성화 #############
   >#crm configure
   crm(configure)# property stonith-enabled=false
   crm(configure)# property no-quorum-policy=ignore
   crm(configure)# rsc_defaults resource-stickiness=100
   crm(configure)# commit


   ############## HA용 VIP 설정 #####################
   crm(configure)# primitive TEST_STOR_VIP ocf:heartbeat:IPaddr2 params ip={HA VIP} cidr_netmask=24 op monitor interval=10s

   ############## DRBD 연동 #########################
   crm(configure)# primitive TEST_STOR_DRBD ocf:linbit:drbd params drbd_resource="drbd0" op monitor interval="20s" role="Master" op monitor interval="20s" role="Slave"
   crm(configure)# ms MS_TEST_STOR_DRBD TEST_STOR_DRBD meta master-max="1" master-node-max="1" clone-max="2" clone-node-max="1" notify="true"
   crm(configure)# primitive TEST_STOR_FS ocf:heartbeat:Filesystem params device="/dev/drbd0" directory="/data" fstype="xfs"




   ############ DRBD 그룹구성, 서비스 구동 순서 설정 #################3
   crm(configure)# group TEST_STOR_GP TEST_STOR_FS TEST_STOR_VIP meta migration-threshold="5"
   crm(configure)# colocation DRBD_on_HA inf: TEST_STOR_GP MS_TEST_STOR_DRBD:Master
   crm(configure)# order DRBD_after_HA inf: MS_TEST_STOR_DRBD:promote TEST_STOR_GP:start




   ############## 리소스 구성후 완료 ######################
   crm(configure)# commit

7. HA구성정보 확인

   # crm_mon -1
   Stack: classic openais (with plugin)
   Current DC: TEST-STOR#1 (version 1.1.18-3.el6-bfe4e80420) - partition with quorum
   Last updated: Wed Dec 18 18:29:46 2019
   Last change: Mon Sep  2 19:26:34 2019 by root via crm_resource on TEST-STOR#1

   2 nodes configured (2 expected votes)
   5 resources configured

   Online: [ TEST-STOR#1 TEST-STOR#2 ]

   Active resources:

    Master/Slave Set: MS_TEST_STOR_DRBD [TEST_STOR_DRBD]
        Masters: [ TEST-STOR#1 ]
        Slaves: [ TEST-STOR#2 ]
    Resource Group: TEST_STOR_GP
        TEST_STOR_FS        (ocf::heartbeat:Filesystem):    Started TEST-STOR#1
        TEST_STOR_APACHE    (lsb:httpd):    Started TEST-STOR#1
        TEST_STOR_VIP       (ocf::heartbeat:IPaddr):        Started TEST-STOR#1
